PITAN

Copyright © 2016 Gerr Marine, Inc.

Pitan

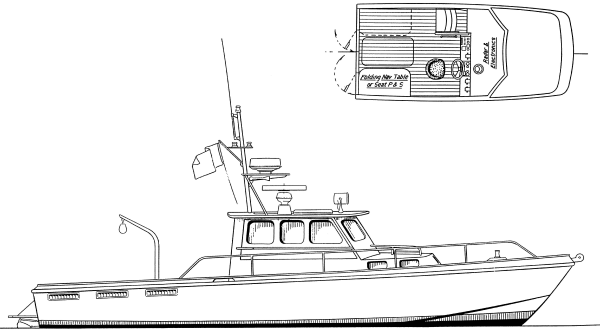

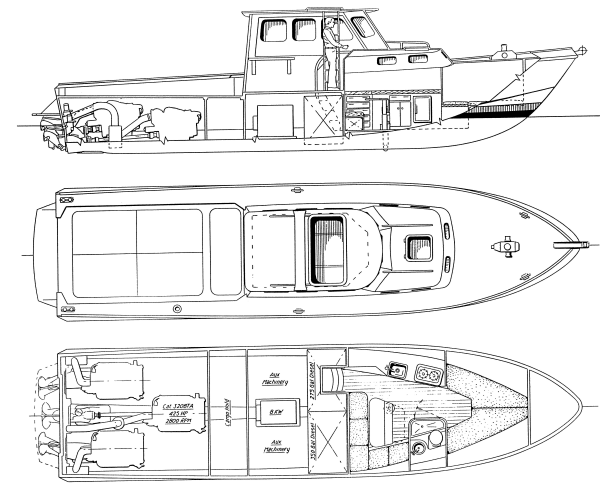

42-foot (12.5 m) FRP/composite triple-jet-drive patrol/supply boat

LOA: 42 ft. - 0 in. (12.5 m)
DWL: 37 ft. - 3 in. (11.3 m)
Beam: 10 ft. - 9 in. (3.3 m)
BWL: 10 ft. - 8 in. (3.2 m)
Draft: 2 ft. - 5 in. (0.7 m)
Displacement: 12.6 tons
Diesel: 625gal. (2365 l)
Water: 40 gal. (150 l)

Power: (3) CAT 3208-TA, 425 hp
            (316 KW) @ 2,800 RPM
Speed: 40 knots max, 26 knots cruise
Range:
40 knots, 3 engines, standard tanks: 220 miles
26 knots, 2 engines, standard tanks: 620 miles
26 knots, 2 engines, extended tanks: 1,200 miles
18 knots, 2 engines, extended tanks: 1,700 miles
